Dual Sewage Hottaps on Concrete Mortar Lined Concrete Pipe

Tank Tapping Services

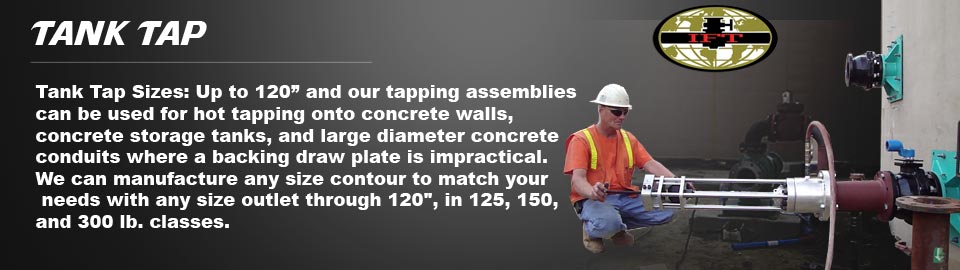

Tank Tapping Sizes: Up to 120” any thickness of Walls can be tapped. 20’ thick or thicker have been performed. Our tank tapping assemblies can be used for hot tapping onto concrete walls, concrete storage tanks, and large diameter concrete conduits where a backing draw plate is impractical. We can manufacture any size contour to match your needs with any size outlet through 120", in 125, 150, and 300 lb. classes. The body is fabricated from carbon steel and is available in shop coat or fusion epoxy coat, with either shop coated, fusion epoxy lined or mortar lined waterways. The assembly is fabricated to match the existing wall contour. Our stainless steel anchor bolts are used to attach the tapping outlet securely to the wall. For smooth walls, one Q-Ring seal is adequate, though for extra security two Q-Ring seals can be used. All assemblies include stainless steel anchor bolts, and a carbide drill bit structure for drilling the concrete structure.

Corporate: 1-800-221-3332
Wasilla, AK:
Temecula, CA:
Orlando, FL:
Oklahoma City, OK:
Nashville, TN:
Houston, TX:
International #: 951-926-4849
Fax #: 951-926-2334

Our Patented Square Flange Products allow Hot Tapping of Butterfly Valves, Plug Valves or “leave no valve” after the connection.



Eastern Municipal Water District Perris, CA.
Location: Regional Sewage Plant San Jacinto, CA.
12" Concrete Storage Tank Items used for job:
Item I
2 -- 6" - Wall Tapping Plates (Fusion Epoxy coated & Stainless hardware)
2 -- 6" Flanged Full port Ball valves (American Valve 4000) 2 -- 316 stainless Nut bolt and gasket sets
2 -- Installation of materials with pressure tests
2 -- 6" Hot tapping on concrete lids (apx. 12" thick)
Item II
1 -- 4" - Tapping Wall Plates (Fusion Epoxy coated & Stainless Hardware)
1 -- 4" Flanged Full port Ball valves (American Valve 4000)
1 -- 316 stainless Nut bolt and gasket sets
1 -- Installation of materials with pressure tests
1 -- 4" Hot tapping on concrete lids (apx. 12" thick)
